手動漿料閘閥
手動漿料閘閥主要性能規范
Chief Proprty And Specifieation
公稱壓力PN(MPa)
Normal Pressure |
0.6 |
1.0 |
適用介質
Suitable Medium |
紙漿料 |
糖漿、泥漿、紙漿、污水
Pulp、Studge、Dross |
閥體材料
Material Of Body |
鑄鋼、鑄鐵、不銹鋼
Cast-iron、Stainless Steel |
鑄鋼、鑄鐵、不銹鋼
Cast-iron |
適用溫度
Applicable Temperature |
X＜80 |

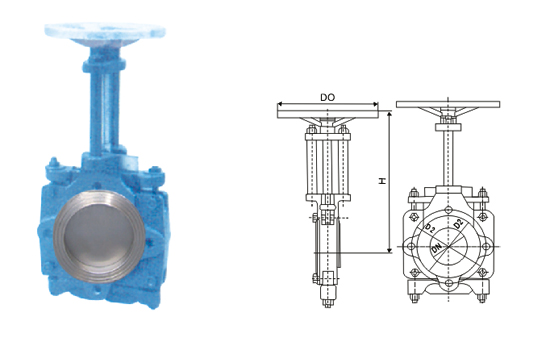

手動漿料閘閥主要外形及連接尺寸
Main External And Connecting Dimensions(mm)
公稱壓力
PN(MPa)
Normal
Pressure |
公稱通徑
DN(mm)
Noninal
Diameter |
主要結構尺寸 |
公稱通徑
DN(mm) |
主要結構尺寸 |
| L |
H |
H1 |
D1 |
D2 |
Z-Φd |
L |
H |
H1 |
D1 |
D2 |
Z-Φd |
| 1.0 |
50 |
48 |
306 |
356 |
125 |
100 |
4-20 |
250 |
70 |
724 |
974 |
350 |
324 |
12-24 |
| 65 |
48 |
320 |
365 |
145 |
145 |
4-20 |
300 |
76 |
820 |
1120 |
400 |
400 |
12-24 |
| 80 |
50 |
336 |
416 |
160 |
160 |
4-20 |
350 |
76 |
921 |
1271 |
460 |
460 |
16-24 |
| 100 |
50 |
374 |
180 |
180 |
180 |
8-20 |
400 |
89 |
1026 |
1426 |
515 |
515 |
16-28 |
| 125 |
57 |
446 |
210 |
210 |
210 |
8-20 |
450 |
89 |
1128 |
1578 |
656 |
565 |
20-28 |
| 150 |
57 |
543 |
240 |
240 |
240 |
8-20 |
500 |
114 |
1225 |
1725 |
620 |
620 |
20-28 |
| 200 |
70 |
610 |
295 |
295 |
295 |
8-24 |
600 |
114 |
1466 |
2066 |
725 |
685 |
20-30 |
